PodiumConnect Micro live telemetry

Price:

499,00 €


Adapter USB A › USB C (0,15m)
Adapter USB A › USB C (0,15m)
9,99 €
9,99 €

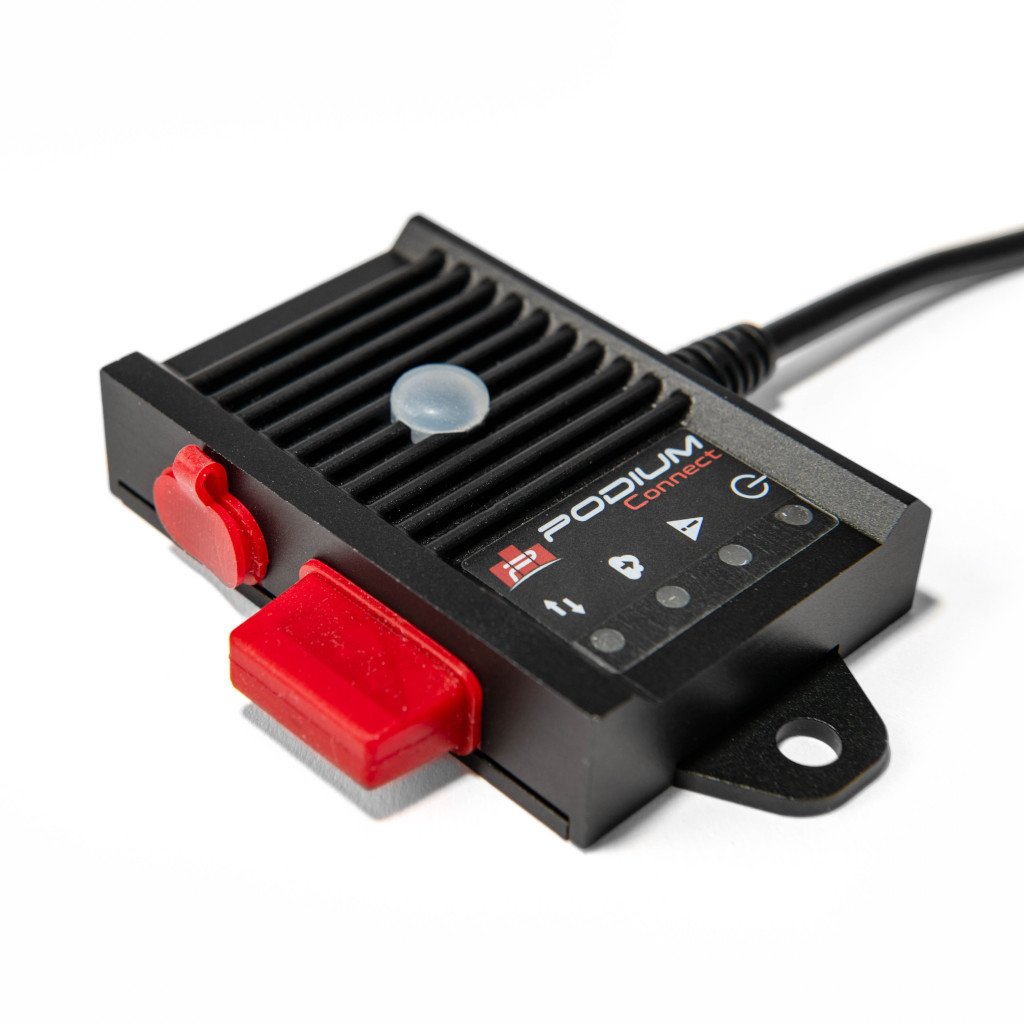

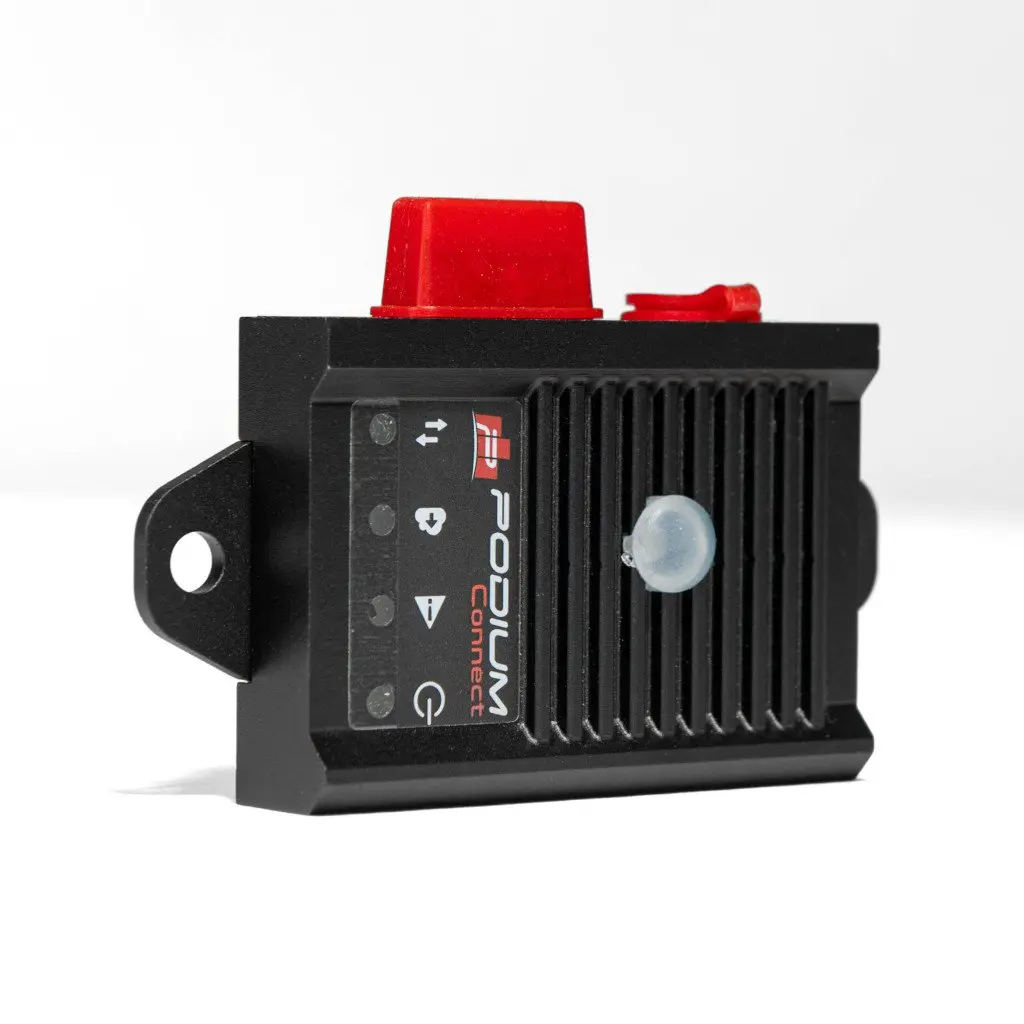

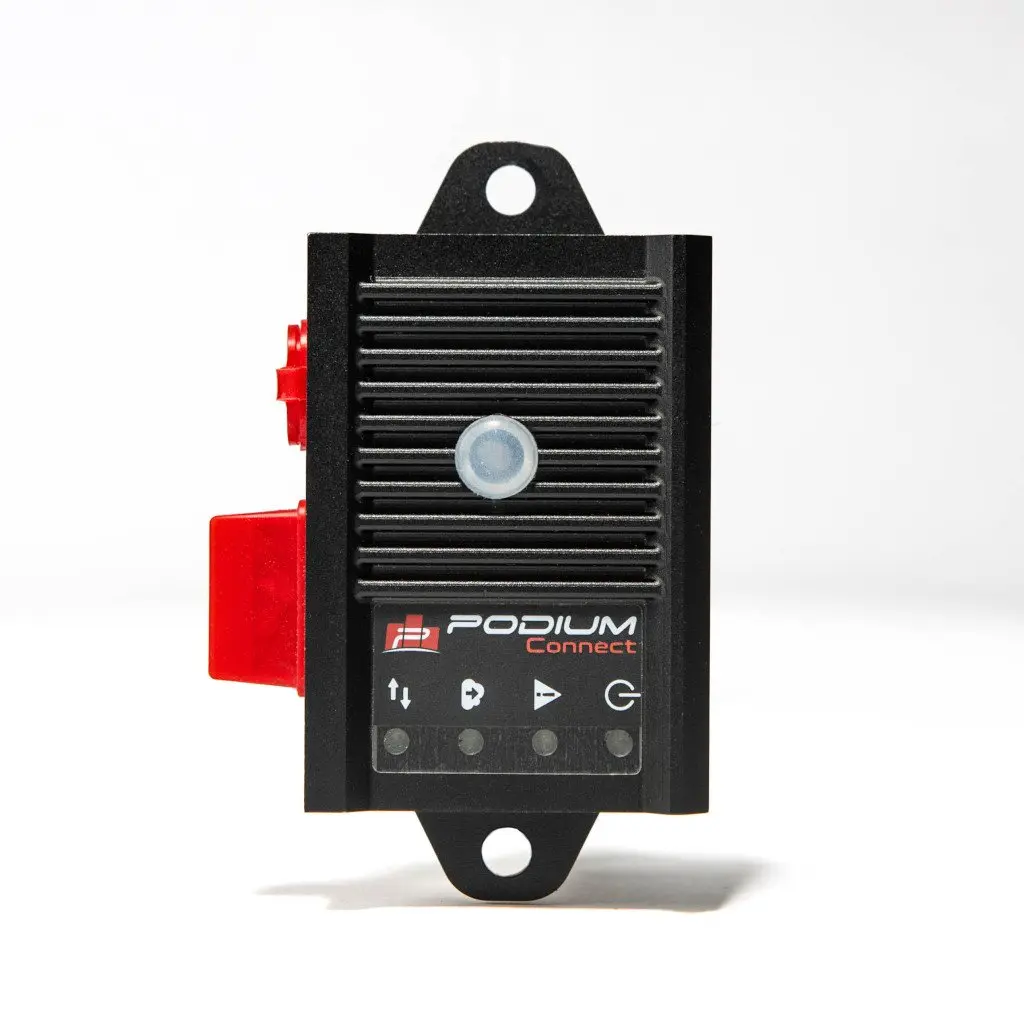

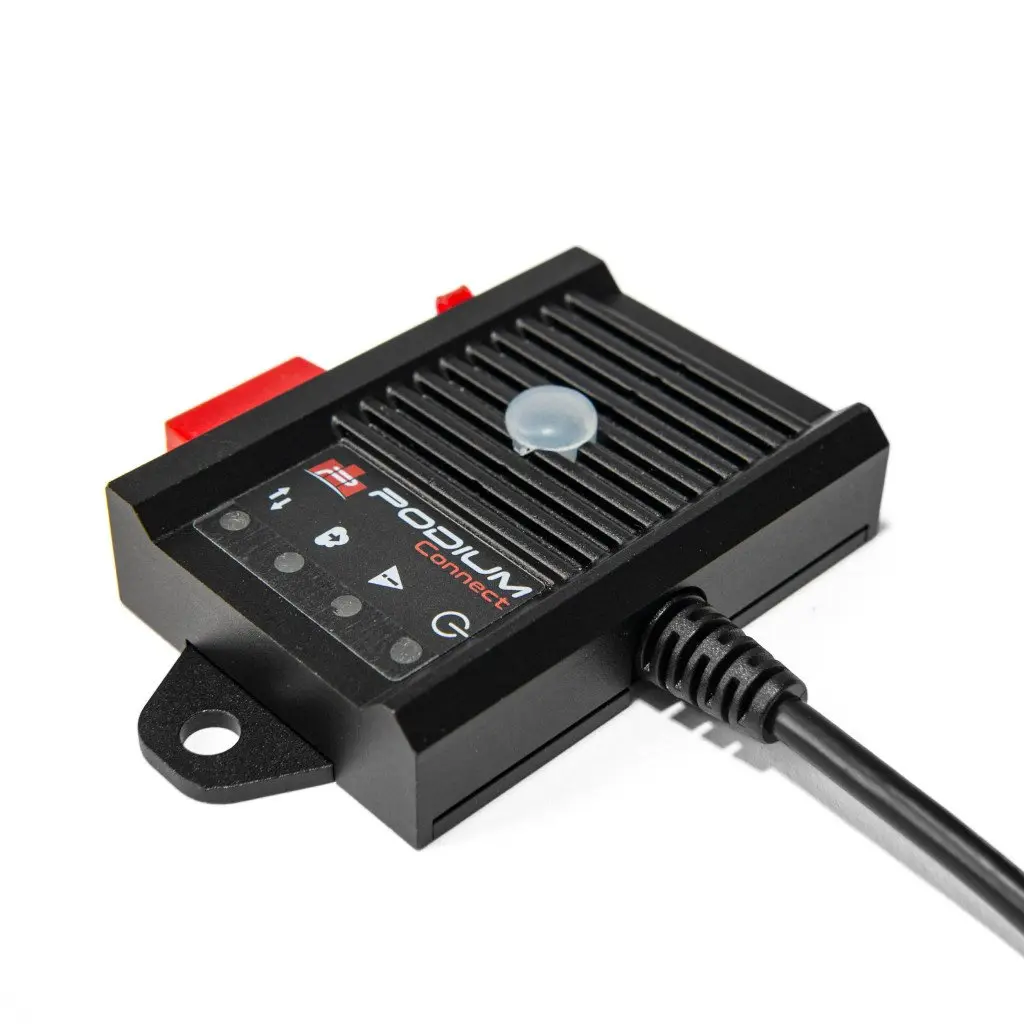

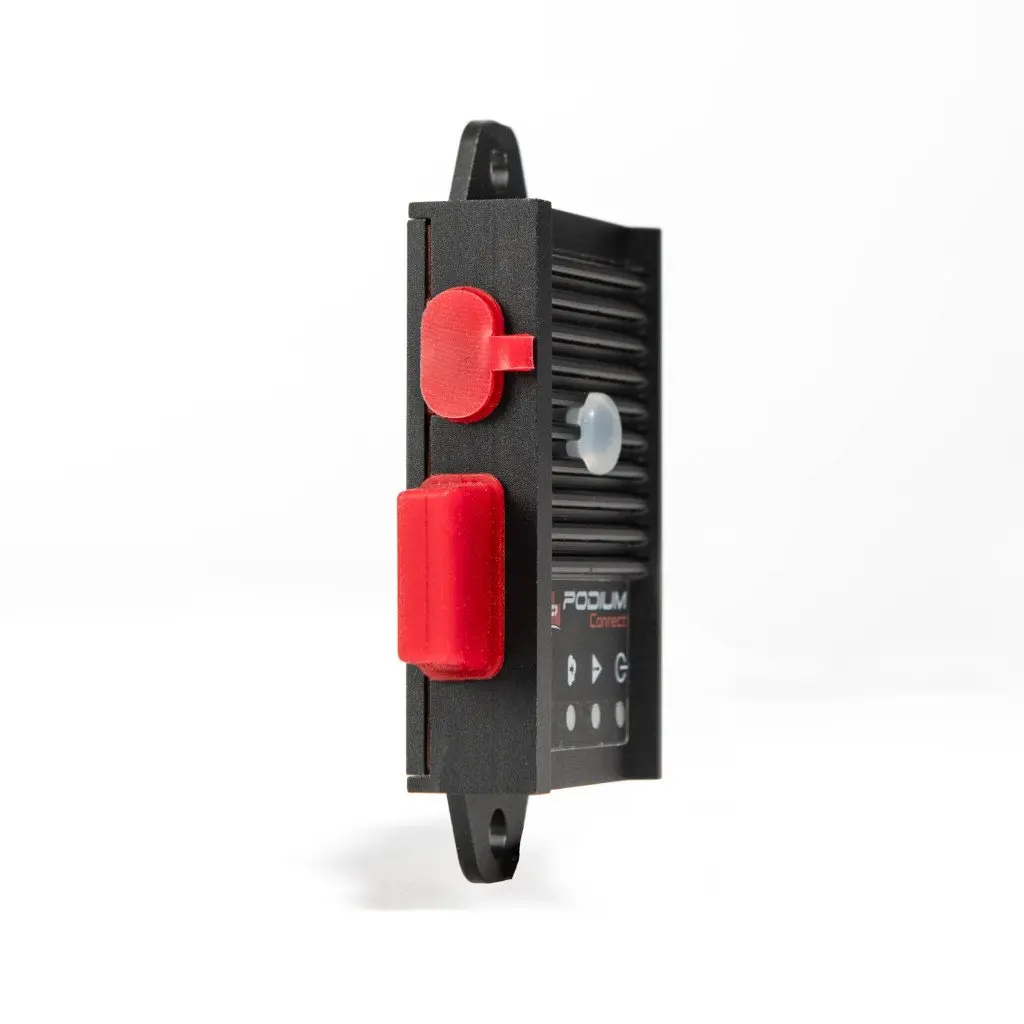

PodiumConnect Micro live telemetry

https://www.jt-performance.nl/web/image/product.template/3257/image_1920?unique=bca367e
10 sold in last 24 hours
Real-Time Telemetry!

499,00 € 499.0 EUR 499,00 € Inclusief btw

412,40 € Inclusief btw

Not Available For Sale

(499,00 € / Stuks)
10 people are viewing this right now

Deze combinatie bestaat niet.

Algemene voorwaarden
30-dagen geld terug garantie
Verzending: 2-3 werkdagen

Real-time telemetry for your ECUMaster, AIM, MoTeC, VBOX, Lowrance, or other data system



Live-stream your race and use the real-time strategy features to help you win

Use PodiumConnect to send real-time telemetry to Podium from your existing data acquisition system. Compatible with ECUMaster, AIM, MoTeC, VBOX, Lowrance, and many other CAN-enabled data systems.





Works with your hotspot or satellite internet, such as Starlink

The WiFi telemetry connection ensures world-wide connectivity – just use an in-car hotspot you provide.  Works with a cellular hotspot or satellite based internet, such as Starlink mini and similar networks.

Real-time racing strategy

Reviewing data after the race is old-school. Use real-time data to make a difference during the race, when it matters!

Monitor Engine vitals

Catch emerging issues before they become costly race-ending failures. Keep an eye on Engine Temperature, Oil Temperature, Oil Pressure, Battery voltage, Transmission Temperature, Coolant Pressure, Tire Pressure, Fuel Pressure – any sensor available from your ECU and other sources.

You can also configure your Podium app to get alerts on these sensors in the pit, and after the race you can review historical data to see where and when the problem happened, correlated with position on track and other sensor data.

Track which driver is in the car

Use a compatible Bluetooth device (sold separately) to track which driver is in the car.  The Driver ID shows up in the telemetry data, making it easy to identify who’s driving, making it easy to compare laps and data between team members.



How it works: each driver has a Bluetooth device on their person – such as a Bluetooth tag or wrist mounted heart rate monitor. PodiumConnect will detect which device is present in the cockpit of the vehicle and assign the current driver to the current telemetry stream.

Get heart rate with compatible heart rate monitor

If you’re using a compatible heart rate sensor (sold separately) you will get heart rate as a bonus telemetry channel in addition to Driver ID!

Chassis Development

With compatible sensors such as the TireX tire temperature sensors, GForce, and Gyro sensors you can plan changes to your suspension while the car is on track, for fast turn-arounds.

Real-time driver coaching

Coach your driver in real-time, selecting a reference lap against a live lap (green). Post-event “download and review” sessions are old-school and obsolete!

You can also perform valuable time-gap analysis to see where time is gained or lost, as soon as the data is livestreamed to Podium.

Compare and share data

Use Podium to effortlessly compare and share laps with your team, your past events, and even other racers

Endurance Racing strategy features

Podium offers enhanced endurance racing strategy tools (Pro subscription plan required) to track fuel consumption for optimal lap time and fuel strategy so you can plan your pit stops with precision.  Avoid late and time-consuming fuel stops that will cost you the race win!



Stream up to 100 sensor channels

A CAN 2.0 compliant interface let you connect your compatible AIM, MoTeC, VBOX, Lowrance, or other CAN-enabled data systems to live-stream sensor data. Here are some examples:

  • High performance GPS from your existing data system
  • Speed data
  • G-forces and gyro data from your existing data system
  • Multi-zone tire temperature sensors
  • TPMS sensors
  • Engine sensors such as oil pressure, engine temperature, RPM, throttle position, and more
  • Thermocouple arrays
  • Aero / Strain gauges
  • Ride height sensors
  • Driver input such as steering angle and brake pressure

Built-in lap timing calculations

PodiumConnect automatically calculates predictive lap timing, including tracking best lap for tracking purposes.

GoPro camera control

PodiumConnect can control your GoPro Camera (supported up to GoPro7) for automatic start/stop of video recording

Easy to use presets

It’s simple to map CAN data channels from a variety of sources:

  • Data systems such as ECUMaster, AIM, MoTeC, VBOX, Lowrance, and other stytems
  • OEM CAN bus networks such as BMW E46, Porsche, Miata, GM-LAN, and more.
  • ECU data directly from AEM, Hondata, Emtron, Link, Haltech, PE3, Megasquirt, and more
  • Connect sensor networks such as the TireX tire temperature sensors

All at the touch of a button!

Single cable for connectivity

Just connect Power, ground, and the data connection to your data acquisition system, then run the setup wizard to get started!

Plug and Play for AIM

Our AIM variant has a plug and play option for the AIM hub, using the AIM standard 5 pin Binder connection.

Specifications

Analog Inputs
Channels1 (Battery Voltage, Internally connected (0-20v))
CAN Bus
CAN Channels1
CAN baud rate125K, 250K, 500K, 1M Baud
Protocol SupportOBDII PID, custom CAN mapping
CAN BusCAN 2.0 compatible
CAN terminationSoftware controlled
CAN channels supported100
Telemetry connection
WiFiConnect to your provided hotspot (cellular or satellite internet)
Maximum Telemetry Sample Rate10Hz (1/5/10Hz supported)
Wireless
WiFi802.11bgn
WiFi ModesAccess Point, Infrastructure
Maximum Sample Rate (link to dashboard)50Hz
Storage
Onboard SDMinimum 2GB
Maximum Sample Rate to SD100Hz
Predictive Lap TimingBuilt-in
Track MappingCircut and point-point
Track mapsBuilt database in for auto-detection
Sectors per track20
AnalysisLocal analysis via the RaceCapture app and online with Podium
Export data formatPlain CSV
Scripting / Customization
Real-time virtual (math) channels / custom channel mappingVia on-board Lua scripting
Virtual Channels100
Physical
Dimensions94 x 61 x 16mm (3.7 x 2.4 x 0.63in)
Temperature range0 to 65c
EnvironmentalIP65 rated
Weight100g (3.6 oz)
ConnectionsM8 Connector, 4 pins (CAN1 and power)
Power Consumption (max)0.6W

Notice

AiM, MoTeC,  ECUMaster, VBOX, Lowrance are trademarks or registered trademarks of their respective holders. Any references to these trademarks does not imply any affiliation or endorsement.
