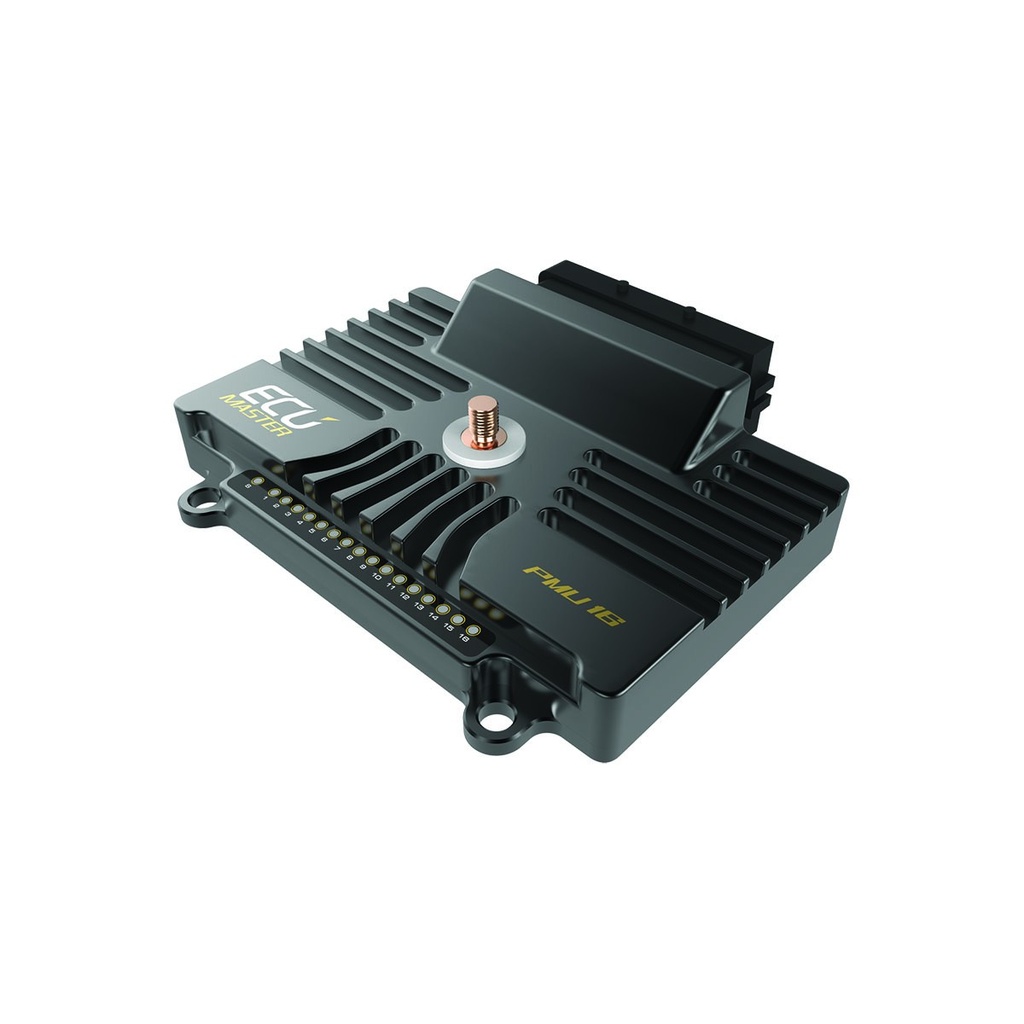

PMU-16-DL Power Management Unit
Deze PMU16-DL bevat een datalogger.

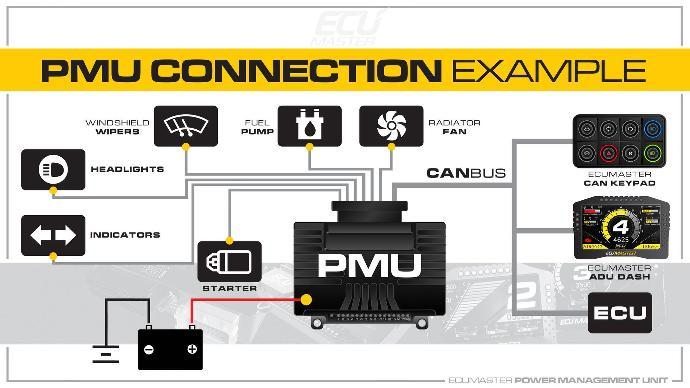

Met de PMU-16 power management unit zijn de ouderwetse relais en zekeringen verleden tijd. De PMU verzorgt de complete stroom verziening en is volledig programmeerbaar. Sturing van verlichting, brandstofpomp, ventilator, ruitenwisser, enz. is met de PMU veel eenvoudiger. Via analoge ingangen of Canbus kunnen uitgangen aangestuurd worden.
TECHNOLOGIE
De PMU16 is geassembleerd volgens IPC-S-815A-normen om productbetrouwbaarheid te garanderen. Het apparaat wordt vervaardigd op een geautomatiseerde assemblagelijn met optische inspectie en geautomatiseerd testen (inclusief inbranden). Het PCB-materiaal en -ontwerp, de speciale oppervlaktecoating en de IP65-behuizing zorgen voor betrouwbaarheid, zelfs in de meest veeleisende omgevingen. Zorgvuldig geselecteerde componenten zorgen voor een continue en betrouwbare werking over een zeer breed temperatuurbereik (AECQ-100 GRADE 1 (-40 tot 125˚C).
GENERAL | |
| Temperature range | AECQ100 GRADE1 (-40 to +125˚C) |
| CPU | 32 bits automotive, 90MIPS |
| Operating voltage | 6-22V, immunity to transients according to ISO 7637 |
| Enclosure | IP 60, bespoke CNC machined aluminium |
| Size (mm) and weight(g) | 131x112x32.5, 370g |
| Connectors | 1 x 39 Automotive connector, 1 x M6 stud for battery connection |
| PC communication | CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER) |
OUTPUTS | |
| High current outputs | 10 x 25A(cont.), 6 x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output |
| Total current output | 150A continuous |
| Output current control step | 100mA |
| Wipers output | Dedicated output with wiper braking feature |
| +5V | Monitored 5V, 500mA output for powering external sensors. |
INPUTS | |
| Analog inputs | 16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns |
| CAN Keypads | 2 x Ecumaster keypads (4, 6, 8, 12 keys) |
OTHER | |
| Output state indication | 16 bicolour LEDs |
| Accelerometer/Gyroscope | 3D accelerometer with 3D gyroscope for logging and crash detection |
| Real time clock | Yes, super capacitor for backup power (up to 3 days) |
CAN BUS | |
| CAN interface | 2 x CAN2.0 A/B |
| CAN standard | CAN2.0 A/B – 125, 250, 500, 1000 kbps |
| Input/output stream | User defined with bit masking, up to 100 input messages |
LOGGING* | |
| Logging memory | 256 Mbytes |
| Logging speed | Variable, defined per channel, up to 500Hz |
| *Only in PMU-16 DL version. | |
FUNCTIONS | |
| Logical operations | AND, OR, NOT, XOR, >, <, =, >=, <=, !=, isTrue, isFalse, Toggle, Flash, Pulse |
| Number of functions | 100 |
| Number of operations | 250 |
| Update frequency | 500Hz |
| Special functions | Wipers, Indicators |
wat zit in de doos?
1x Ecumaster PMU-16 DL
1x Connector SICMA 39pin
1x Warianty card
1x Pinout description
1x Screw cover M6
4x Terminal 211CC3S3120
12x Terminal 211CC3S2120
27x Terminal 211CC2S2160P
